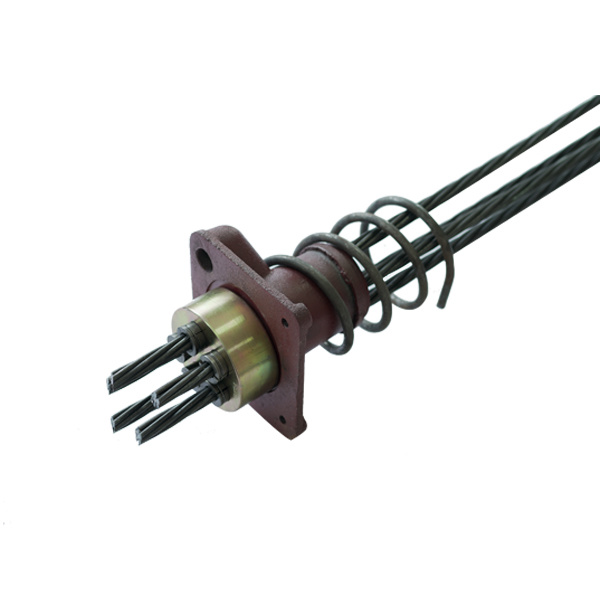

Multi Strand Anchorage

WhatsApp:+86 15620168559

Prestressed Anchorage are widely used in highway bridges, railway bridges, urban interchanges, rail transit, high-rise buildings, water conservancy and hydropower dams, port wharves, LNG low-temperature natural gas storage and transportation tanks, wind power towers, photovoltaic power generation supports, rock slope protection and anchoring, foundation reinforcement, tunnel support, prestressed grid structures, urban subways, large comprehensive venues, warehouse plants, tower buildings, heavy lifting, intermittent sliding membrane propulsion, bridge and tunnel pushing In prestressed structures such as large vessels and ships, sleepers, replacement of bridge bearings, reinforcement of bridges and buildings, reinforcement works, anti-magnetic and anti-corrosion works (fiber anchors), carbon fiber reinforcement, pretensioned beam field construction, external prestressed works, stay cables, suspension cables, suspenders, etc., appropriate anchorages, clamps and connectors shall be selected according to the project environmental conditions, structural characteristics, prestressed reinforcement varieties and tensioning construction methods. For non-standard products, our company can carry out customized production according to client’s standards.

Category

Anchorage

Accessories

Inquiry

Details

BRIEF INTRODUCTION

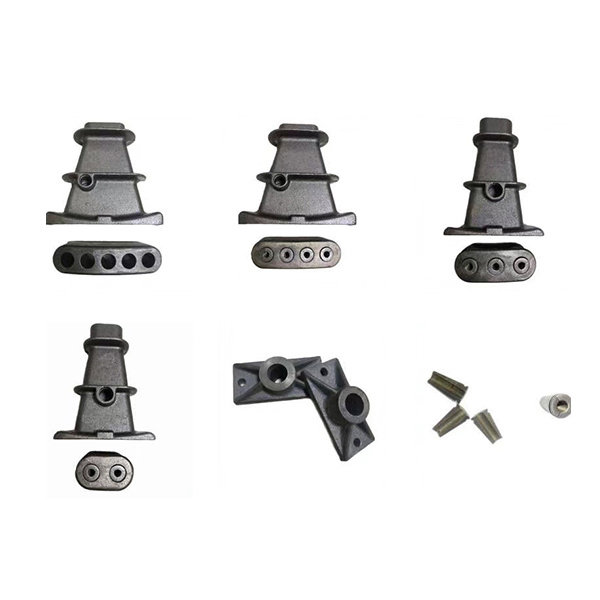

Prestressing Anchorage is mainly composed of the following parts:

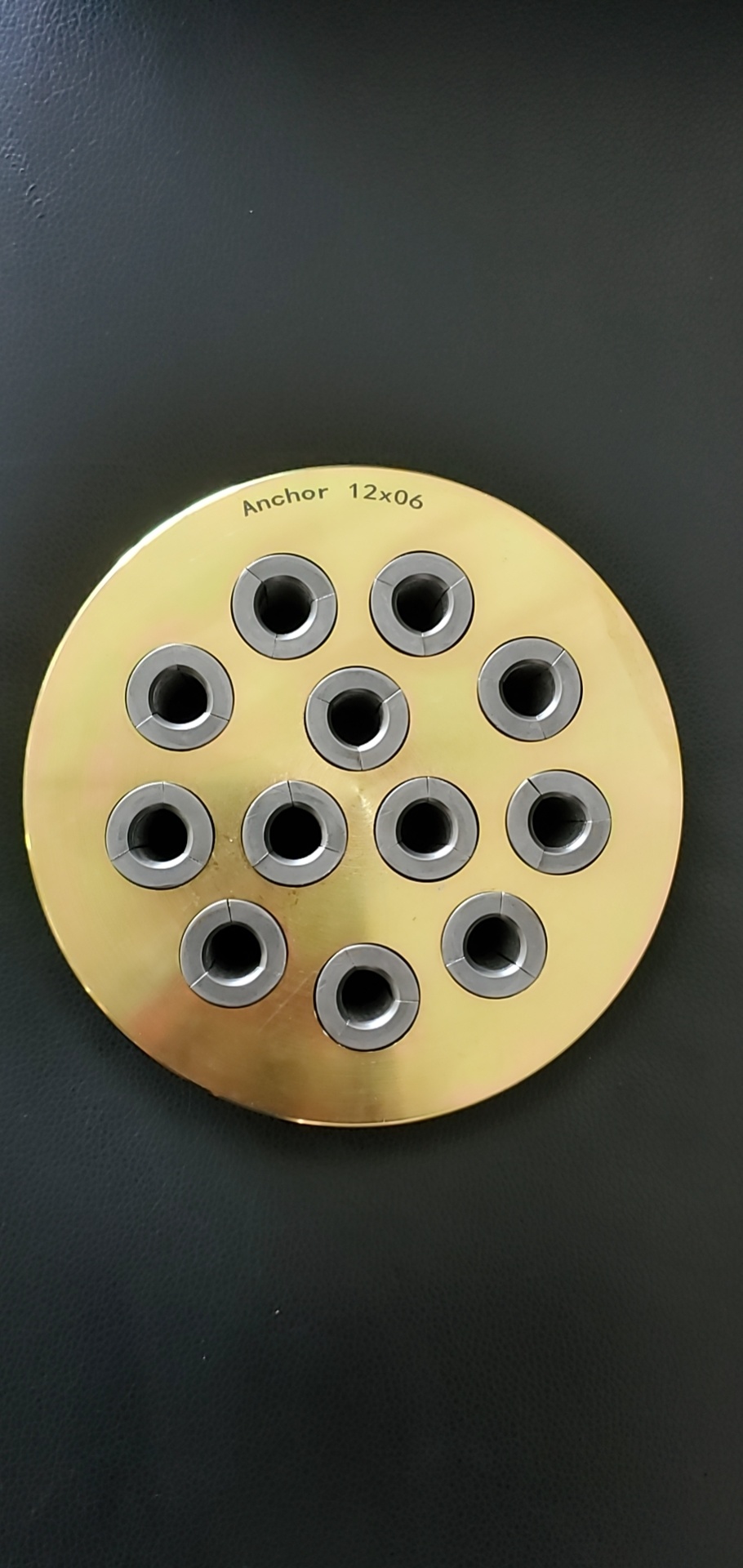

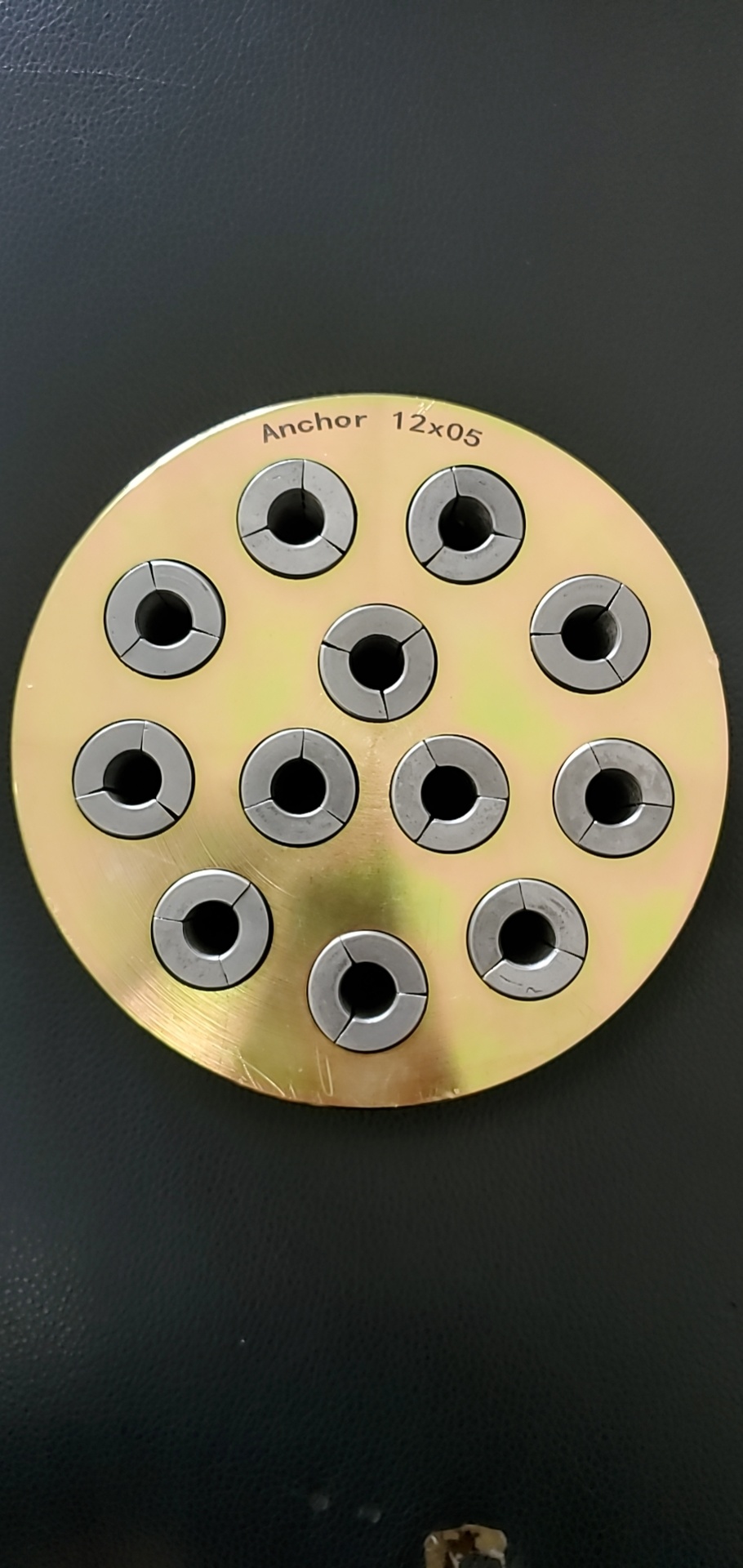

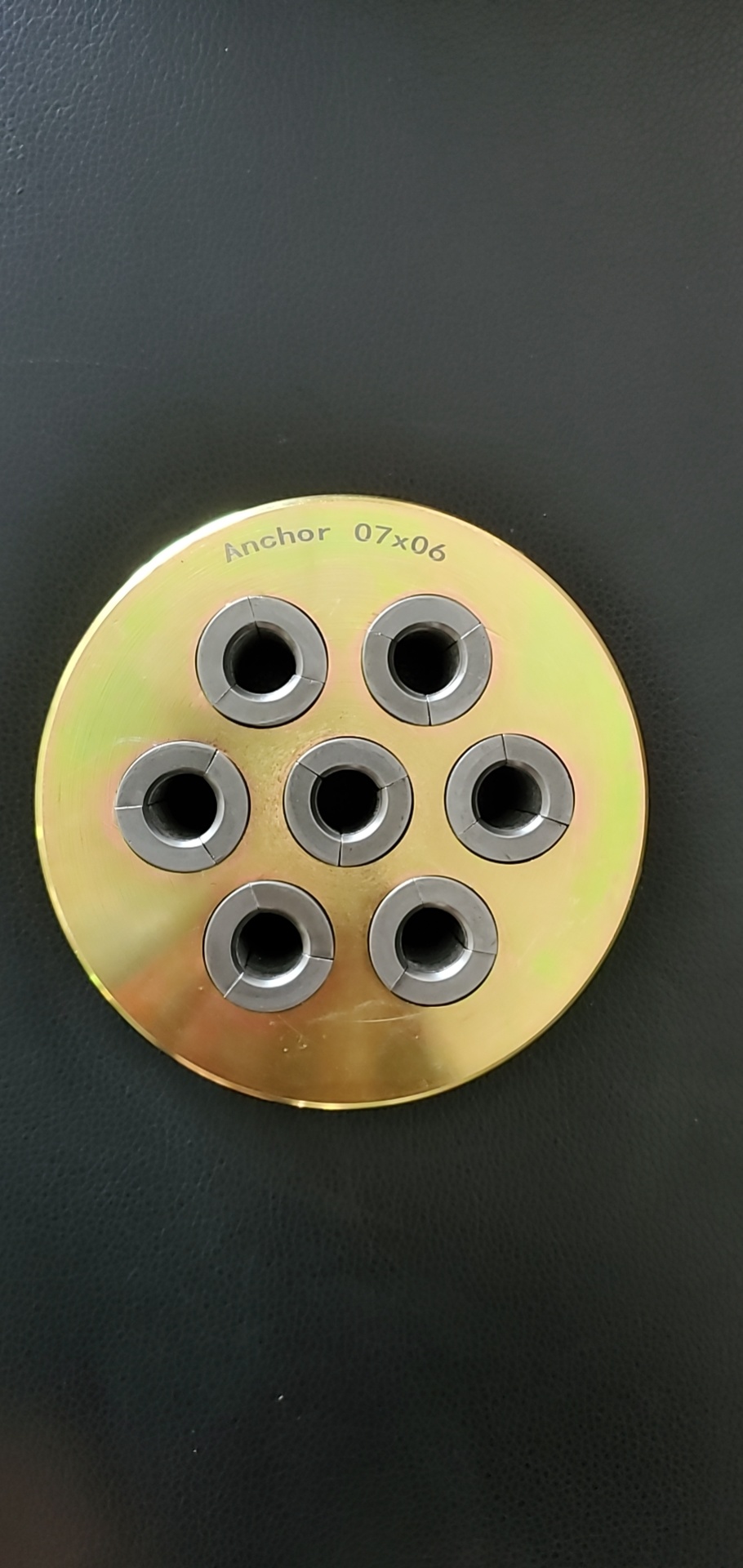

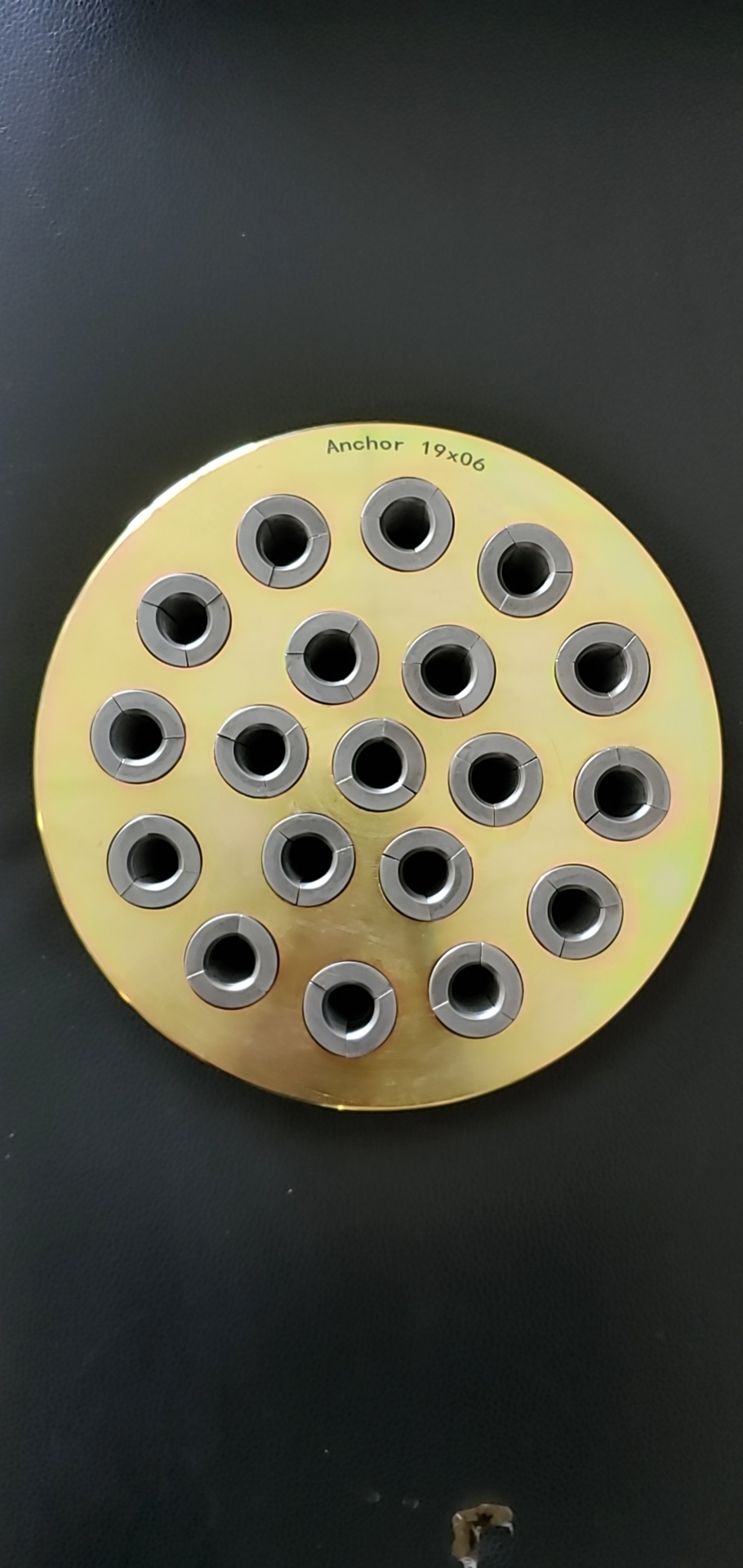

Anchor Head

In post tensioned prestressed concrete structure or prestressed steel structure, it is a permanent anchoring device used to maintain the tension of prestressed reinforcement and transfer it to the structure.

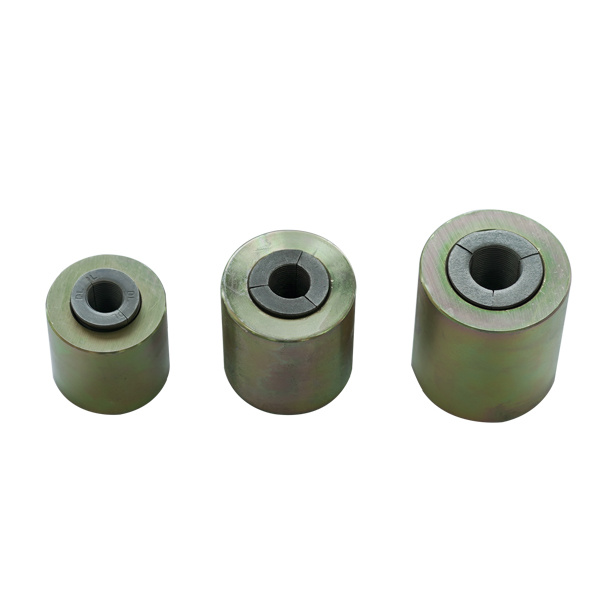

Wedges (Clamp Grip)

A temporary anchoring device used to maintain the tension of the prestressed tendon and fix it on the production pedestal (or equipment) during the production of pretensioned prestressed concrete members; When post tensioning prestressed concrete structure or prestressed steel structure is used to tension prestressed tendons, a temporary anchoring device is used to clamp the prestressed tendons on the tensioning jack or equipment.

Coupler

Coupler is a device used to connect prestressed tendons.

Bearing Plate

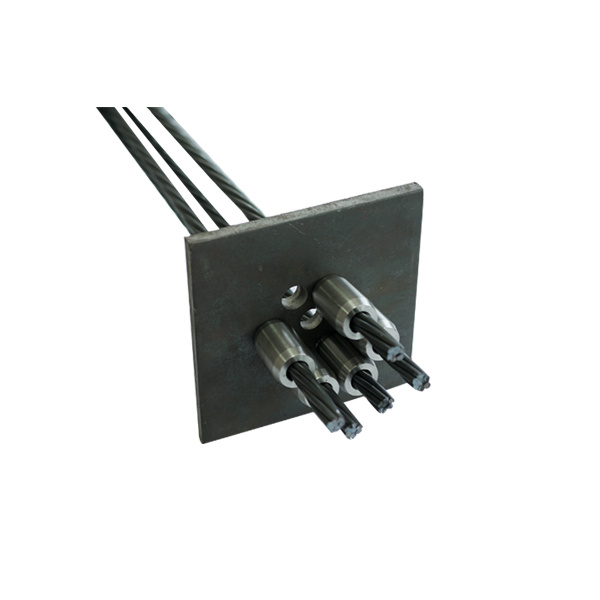

Bearing Plate in the post-tensioned prestressed concrete structure, the components used to withstand the prestressed force from the anchor and transmit it to the concrete include Basic Bearing Plate and Casting Bearing Plate. Basic Bearing Plate in the post-tensioned prestressed concrete structure, the prestressed force from the anchor is directly transferred to the steel plate of the concrete.

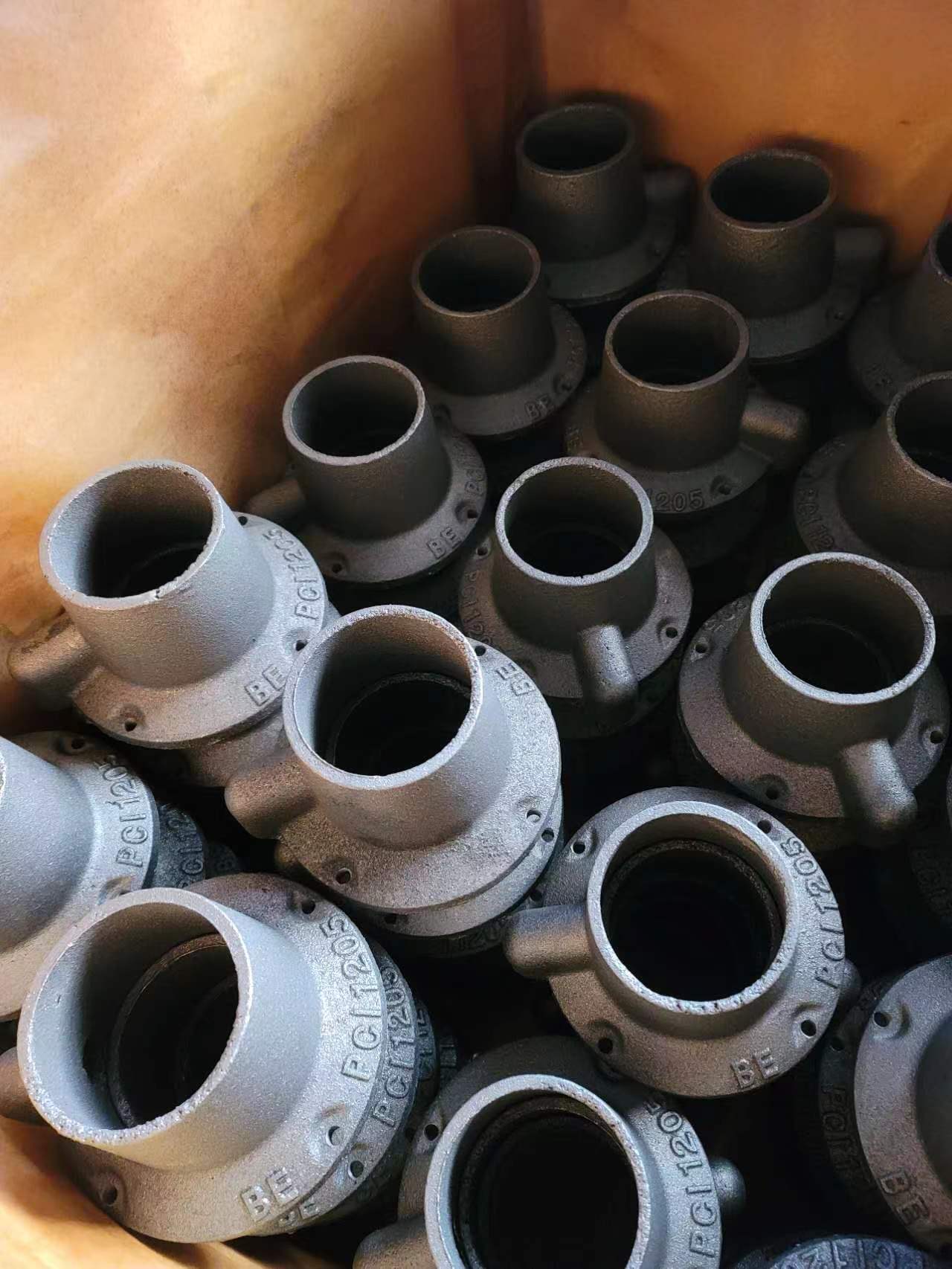

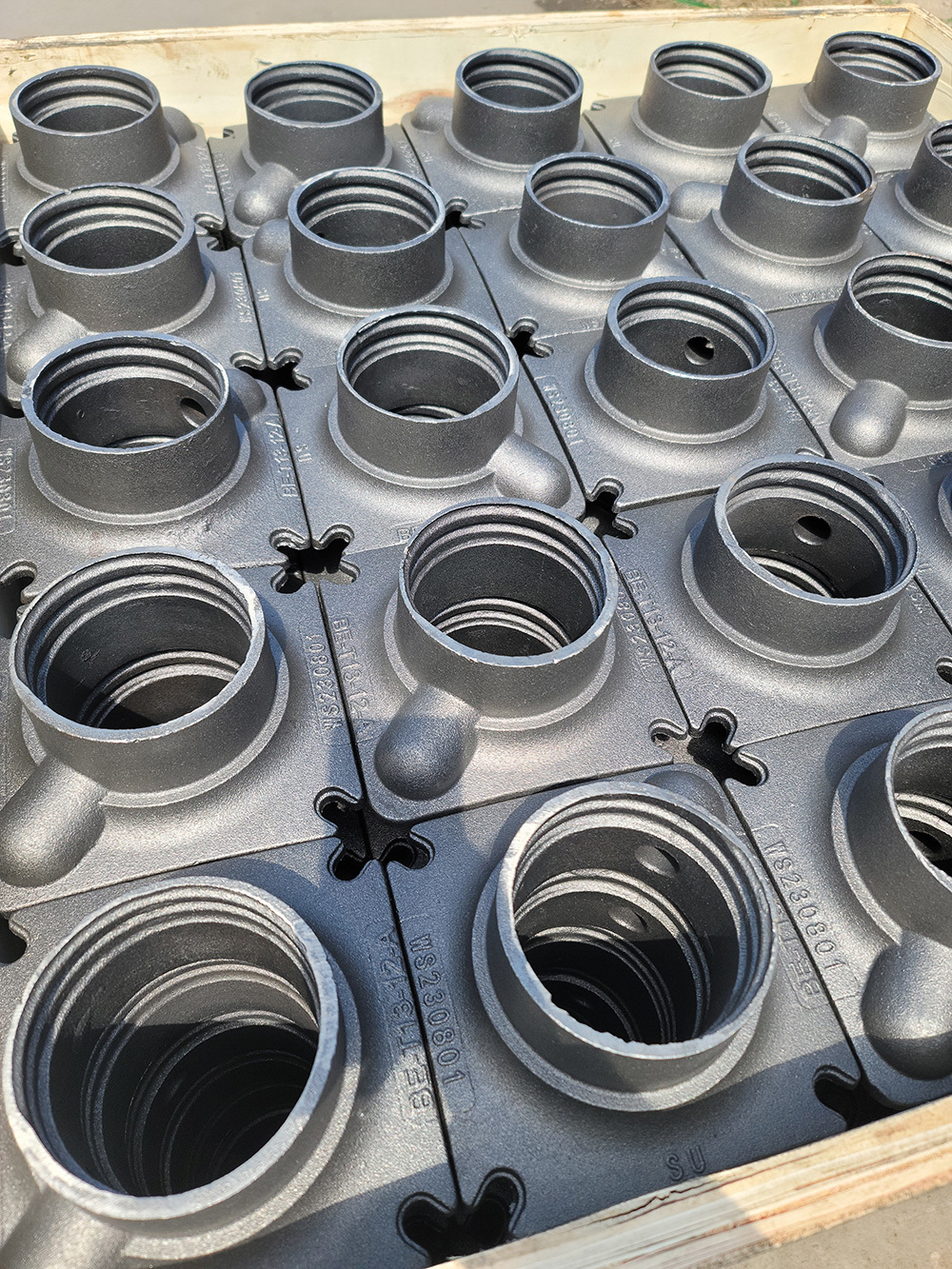

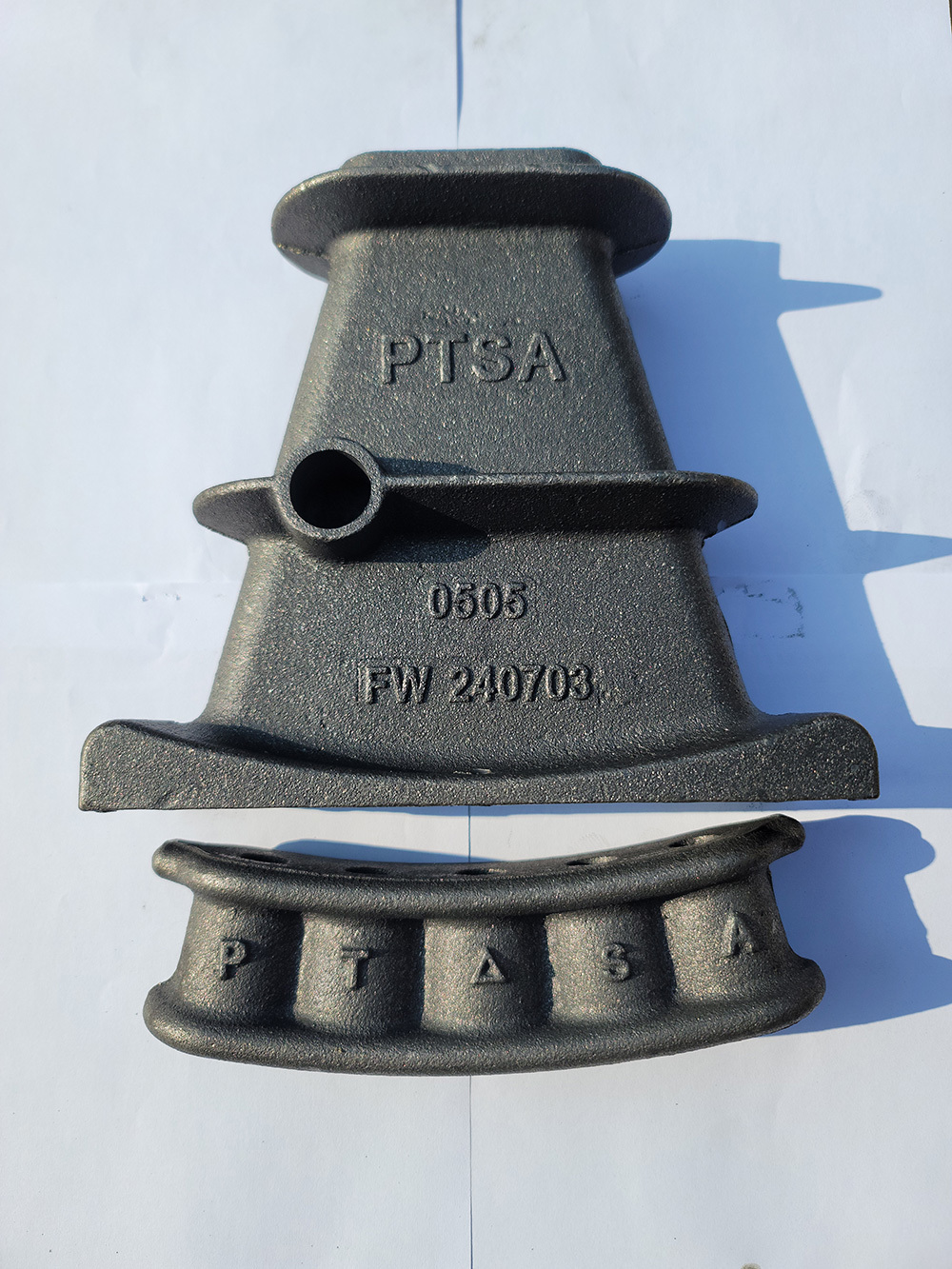

Casting Bearing Plate The backing plate that casts the end plate and the horn tube into one, usually adds a secondary flange or a tertiary flange to the horn section, and the force transmission depends on the end plate, the horn section and the flange.

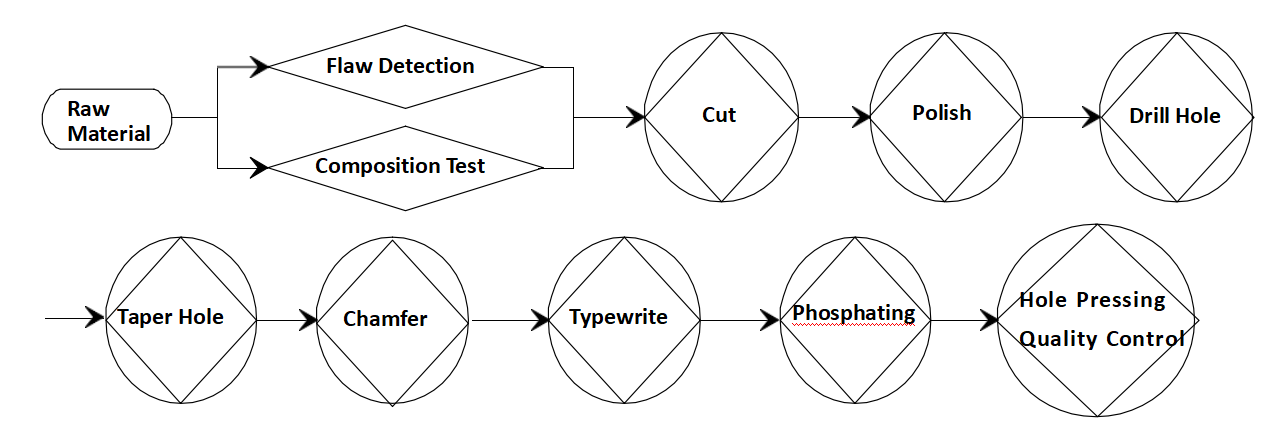

PRODUCTION PROCESS

KEY PARAMETERS

Product Name	Prestressed Anchorage; Prestressed Cable Anchor; Post Tension Anchor
Place of Origin	Tianjin,China
Dimension	From Single hole to 37 holes, Customized
Surface Treatment	Black, Zinc Coated; Brightened

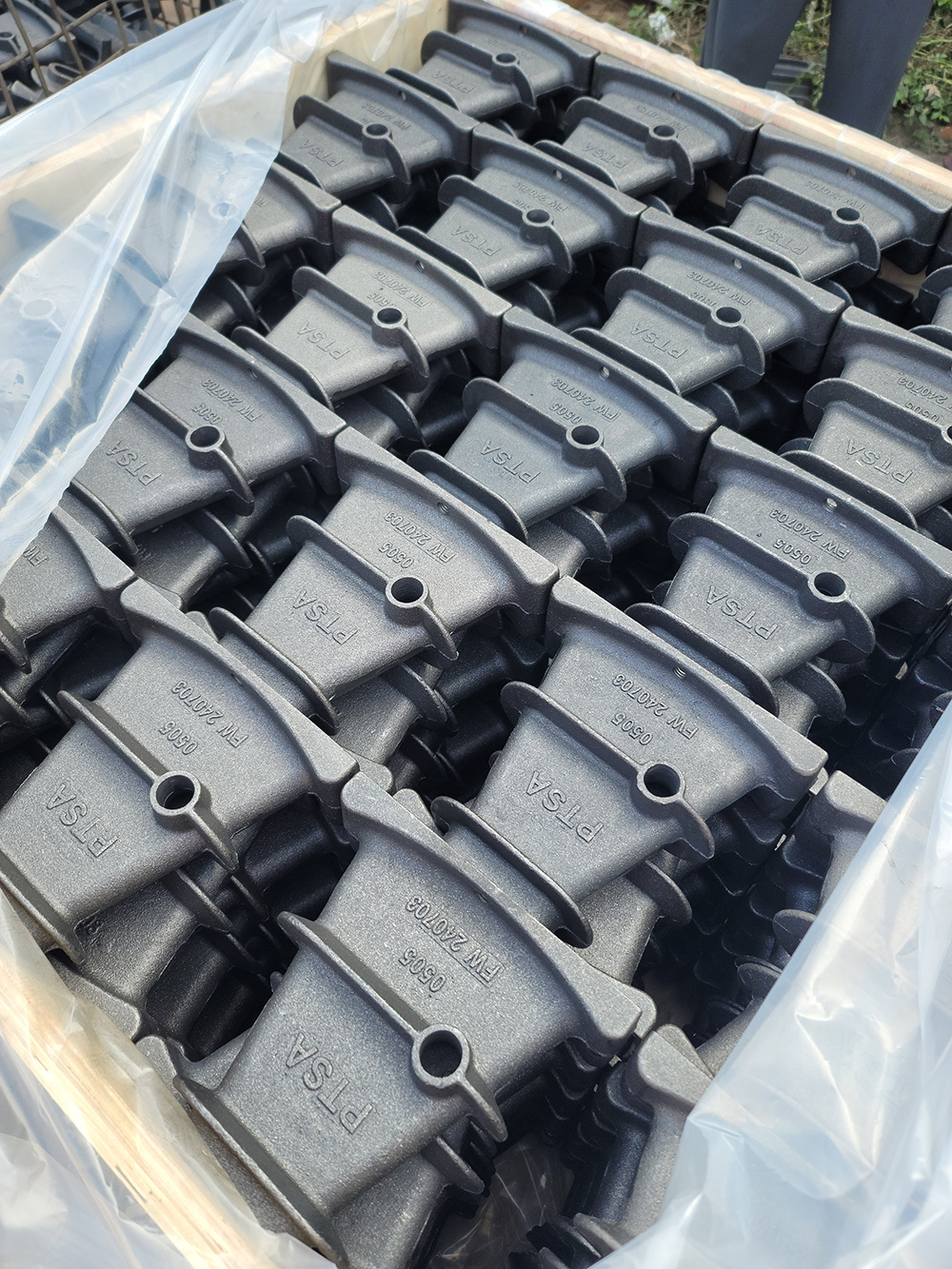

Packaging	Export Wooden Case
Minimum order	One Set
Payment terms	T/T or L/C

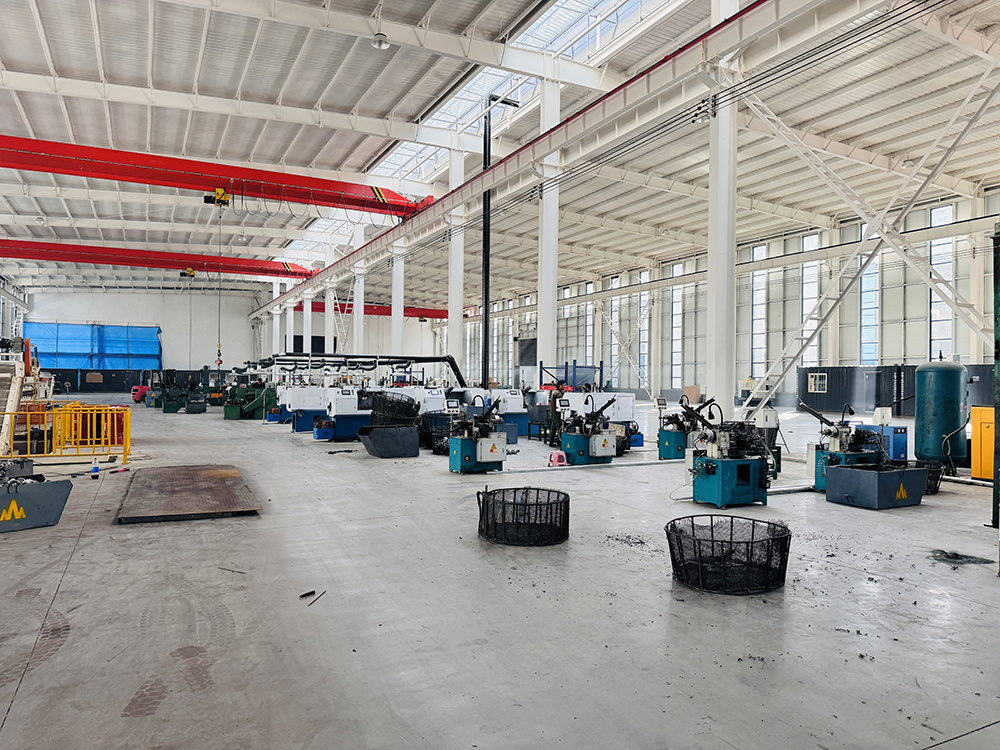

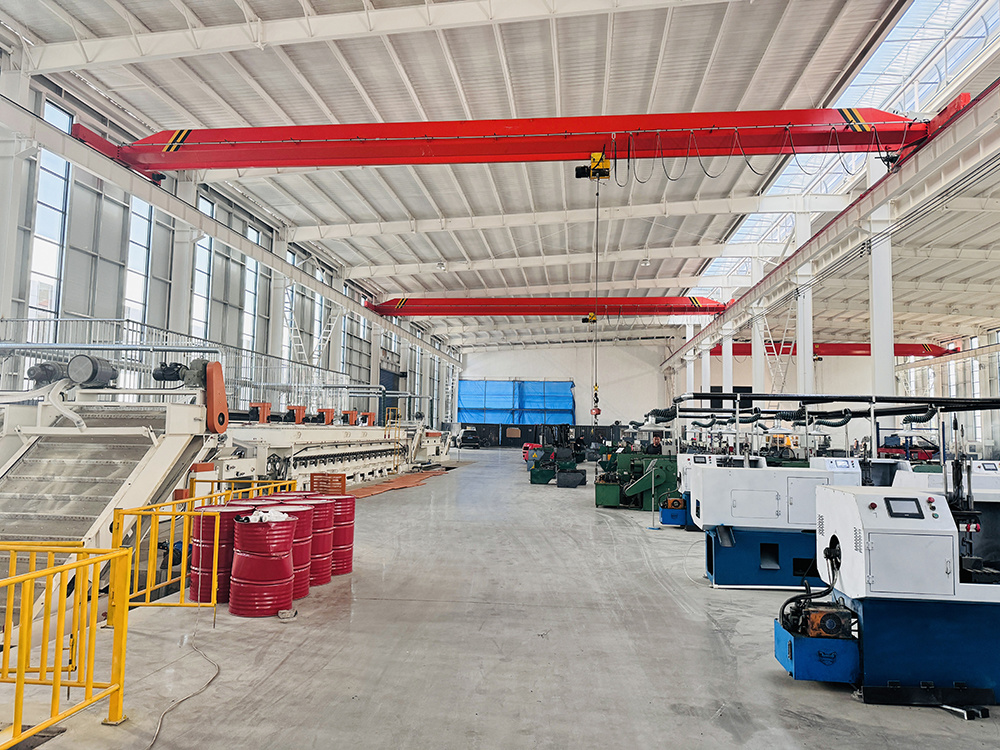

FACTORY DISPLAY

Keywords:

Multi Strand Anchorage

Barrel and Wedges
